Featured

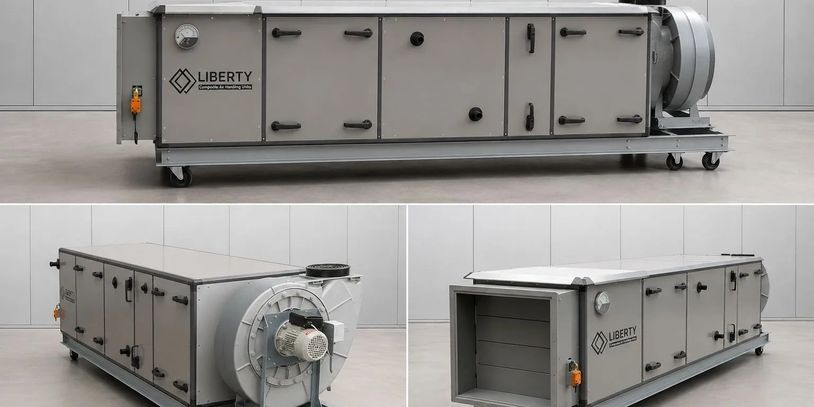

Liberty Composite Air Handling Unit
- Delivering 1470 cfm at 1.3 " ESP, this Liberty Indoor AHU is constructed from fiber reinforced composite (FRC) material for light weight and maximum corrosion resistance
- Composite air Intake damper/HEPA filter with composite holding frame
- HDPE cooling coil by Claorplast with 52.5 MBH of cooling capacity with composite drain pan
- PP droplet eliminator with composite plastic drip pan
- PP fan and impeller with motor located outside of the airstream
- Unit weight is approximately 440lbs
Our Products
- Danfoss-Polaris manufactures custom plate and frame heat exchangers for various HVAC and Industrial applications
- For domestic hot water and food processing applications, Danfoss safety-pair double wall HEX provides total separation of primary and secondary fluids. The air space created by the paired plates provides zero cross contamination between the two fluids and makes leaks, if any, visible from the outside.
Liberty is leading in development and manufacturing of custom air handling constructed from composite material specifically suitable for highly corrosive environments.
- Air flow range: 800cfm-80,000 cfm
- Standard casing construction suitable for application in corrosive environment; classified C5 according to ISO 12944-2
- D1 classification in accordance EN1886. Casing shall deflect no more than 0.048in/ft under 4.01 in.wg
- Liberty AHU's casings can weigh up to 40% less than standard steel AHU casings.
- Electric- Hot Water or Steam boilers up to 120kW-3600kW
- NG/LPG atmospheric burner - Steam boilers (1.5-20 HP)
- NG/LPG Dual Fuel Power burners -Steam boilers ( 9.5-50HP)
- SB 563 to 5,443 MBH input Fire-tube, high mass, high efficiency condensing boilers with multi fuel options, dual return, and no minimum requirements for return temperatures /flow rates.
- SSB 800 to 4,096 MBH input Water- Tube, low mass, packaged high efficiency condensing boilers with modular design and factory integrated boiler pumps options
